VALVE
| Ball Valves Specification : | |||
| Valve Type | Class Rating | Size Range | Shell Material As Per Specification |
| Ball | 150# | 1/2″ to 72″ | ASTM A216 Gr. WCB |
| Ball | 300# | 2″ to 48″ | ASTM A217 Gr. WC1 |
| Ball | 600# | 2″ to 42″ | ASTM A217 Gr. WC6 |
| Ball | 800# | 1/2″ to 2″ | ASTM A217 Gr. WC9 |
| Ball – PRESSURE SEAL | 900# | 1/2″ to 24″ | ASTM A217 Gr. C5 |
| ASTM A217 Gr. C12 | |||
| ASTM A351 Gr. F8 | |||
| Ball – PRESSURE SEAL | 1500# | 1/2″ to 24″ | ASTM A351 Gr. F3 |
| ASTM A351 Gr. F8M | |||
| ASTM A351 Gr. CF3M | |||
| ASTM A351 Gr. CN7M | |||
| Ball – PRESSURE SEAL | 2500# | 1/2″ to 12″ | ASTM A351 Gr. CF8C |
| Ball – CRYOGENIC | 150# | 2″ to 36″ | ASTM A351 Gr. CD4Mcu |
| Ball – CRYOGENIC | 300# | 2″ to 36″ | ASTM A351 Gr. CK3MCuN |
| ASTM A352 Gr. LCA | |||
| ASTM A352 Gr. LCB | |||
| ASTM A352 Gr. LCC | |||
| ASTM A494 Gr. CW6MC | |||
| ASTM A494 Gr. CW2M | |||
| ASTM A494 Gr. CW2M | |||
| ASTM A494 Gr. CY40 | |||
| Ball – CRYOGENIC | 600# | 2″ to 24″ | ASTM A494 Gr. CU5MCuC |
| ASTM A995 Gr. 1A | |||
| ASTM A995 Gr. 4A | |||
| ASTM A995 Gr. 5A | |||
| ASTM A995 Gr. 6A | |||
| NACE malt. Grade to NACE MR0175/NACE MR |
- Valves Can be Supplied With Actuator,Pad Lock and Other Accessories Like Limit Switch, Position Indicator, Solenoid Valve as Per Requirement
- Stem Extention, Underground Service Features are Available
- Design Standard Upto 24″ IS API 600 and Above 24″ IS BS 1414
Standards :
| Design Standard | API 600/BS1414 |
| Testing Standard | API 598/BS EN 12266-1 |
| Face To Face | ASME B 16.10 |
| End Connection | Flanged End – ASME B 16.5 Butt Weld End – ASME B 16.25 |
| Pressure – Temperature Chart | ASME B 16.34 |
Valve Operation :
| Operator | Size Range |
| Handwheel | 2” – 10” – Class 150, 300, 600 |
| 2” – 4” – Class 900 & 1500 | |
| Gear Operator | 12” & Above – Class 150, 300, 600 |
| 6” & Above – Class 900,1500 |
Material :
| STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC |
| Operation | Hand wheel, Gear Operator, Electrical Actuator, Pneumatic, Hydraulic | |
| MATERIAL | Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel |
| Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel |
Butterfly Valves :
Design Standard : API 609 MESC SPE 77 / 134, BS 5353 BSEN593, ANSI AWWA C504-94
Testing Standard : API 598, API 6D, MESC 77/134, ISO 5208
F to F standard : ASME B16.10
Size : 2” up to 88“ (DN 50 up to DN 2200)
Pressure Rating : ASME 150# to 900#
Operator / Actuator : Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
Materials : Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay
Different Types Of Butterfly Valves :
- Double Offset
- Triple Offsets
- Centre Disc
- Extended Stem
| Valve Type | Class Rating | Size Range | Shell Material As Per Specification |
| Swing Check | 150# | 2″ to 36″ | ASTM A216 Gr. WCB |
| Swing Check | 300# | 2″ to 36″ | ASTM A217 Gr. WC1 |
| Swing Check | 600# | 2″ to 32″ | ASTM A217 Gr. WC6 |
| Swing Check | 800# | 1/2″ to 2″ | ASTM A217 Gr. WC9 |
| Swing Check – PRESSURE SEAL | 900# | 1/2″ to 20″ | ASTM A217 Gr. C5 |
| ASTM A217 Gr. C12 | |||
| ASTM A351 Gr. F8 | |||
| ASTM A351 Gr. F3 | |||
| ASTM A351 Gr. F8M | |||
| ASTM A351 Gr. CF3M | |||
| ASTM A351 Gr. CN7M | |||
| ASTM A351 Gr. CF8C | |||
| ASTM A351 Gr. CD4Mcu | |||
| ASTM A351 Gr. CK3MCuN | |||
| ASTM A352 Gr. LCA | |||
| ASTM A352 Gr. LCB | |||
| SWING CHECK – PRESSURE SEAL | 1500# | 1/2″ to 20″ | ASTM A352 Gr. LCC |
| ASTM A494 Gr. CW6MC | |||
| ASTM A494 Gr. CW2M | |||
| ASTM A494 Gr. CW2M | |||
| ASTM A494 Gr. CY40 | |||
| ASTM A494 Gr. CU5MCuC | |||
| ASTM A995 Gr. 1A | |||
| ASTM A995 Gr. 4A | |||
| ASTM A995 Gr. 5A | |||
| ASTM A995 Gr. 6A | |||
| NACE malt. Grade to NACE MR0175/NACE MR | |||
| Note : Valves Can be Supplied With Actuator, Pad Lock and Other Accessories Like Limit Switch, Position Indicator, Solenoid Valve as Per Requirement Stem Extention, Underground Service Features are Available | |||
Standards :
| Design Standard | BS 1868 |
| Testing Standard | BS EN 12266 – 1 |
| Face To Face | ASME B 16.10 |
| End Connection | Flanged End – ASME B 16.5 Butt Weld End – ASME B 16.25 |
| Pressure – Temperature Chart | ASME B 16.34 |
Material :
| STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC |
| MATERIAL | Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel |
| Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel |
Product Range For Cast And Forged Gate Valves :
| Valve Type | Class Rating | Size Range | Shell Material As Per Specification |
| Gate | 150# | 1/2″ to 72″ | ASTM A216 Gr. WCB |
| Gate | 300# | 2″ to 48″ | ASTM A217 Gr. WC1 |
| Gate | 600# | 2″ to 42″ | ASTM A217 Gr. WC6 |
| Gate | 800# | 1/2″ to 2″ | ASTM A217 Gr. WC9 |
| Gate – PRESSURE SEAL | 900# | 1/2″ to 24″ | ASTM A217 Gr. C5 |
| Gate – PRESSURE SEAL | 1500# | 1/2″ to 24″ | ASTM A217 Gr. C12 |
| Gate – PRESSURE SEAL | 2500# | 1/2″ to 12″ | ASTM A351 Gr. F8 |
| Gate – CRYOGENIC | 150# | 2″ to 36″ | ASTM A351 Gr. F3 |
| Gate – CRYOGENIC | 300# | 2″ to 36″ | ASTM A351 Gr. F8M |
| ASTM A351 Gr. CF3M | |||
| ASTM A351 Gr. CN7M | |||
| ASTM A351 Gr. CF8C | |||
| ASTM A351 Gr. CD4Mcu | |||
| ASTM A351 Gr. CK3MCuN | |||
| ASTM A352 Gr. LCA | |||
| ASTM A352 Gr. LCB | |||
| ASTM A352 Gr. LCC | |||
| ASTM A494 Gr. CW6MC | |||
| ASTM A494 Gr. CW2M | |||
| Gate – CRYOGENIC | 600# | 2″ to 24″ | ASTM A494 Gr. CW2M |
| ASTM A494 Gr. CY40 | |||
| ASTM A494 Gr. CU5MCuC | |||
| ASTM A995 Gr. 1A | |||
| ASTM A995 Gr. 4A | |||
| ASTM A995 Gr. 5A | |||
| ASTM A995 Gr. 6A | |||
NACE malt. Grade to NACE MR0175/NACE MR | |||
Note : Valves Can be Supplied With Actuator,Pad Lock and Other Accessories Like Limit Switch, Position Indicator, Solenoid Valve as Per Requirement Stem Extention, Underground Service Features are Available Design Standard Upto 24″ IS API 600 and Above 24″ IS BS 1414 | |||
Standards :
| Design Standard | API 600/BS1414 |
| Testing Standard | API 598/BS EN 12266-1 |
| Face To Face | ASME B 16.10 |
| End Connection | Flanged End – ASME B 16.5 Butt Weld End – ASME B 16.25 |
| Pressure – Temperature Chart | ASME B 16.34 |
Valve Operation :
| Operator | Size Range |
| Handwheel | 2” – 10” – Class 150, 300, 600 |
| 2” – 4” – Class 900 & 1500 | |
| Gear Operator | 12” & Above – Class 150, 300, 600 |
| 6” & Above – Class 900,1500 |
Material :
| STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC |
| Operation | Hand wheel, Gear Operator, Electrical Actuator, Pneumatic, Hydraulic | |
| MATERIAL | Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel |
| Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel |
Product Range For Cast And Forged Globe Valves :
| Valve Type | Class Rating | Size Range | Shell Material As Per Specification |
| Globe | 150# | 2″ to 24″ | ASTM A216 Gr. WCB |
| Globe | 300# | 2″ to 24″ | ASTM A217 Gr. WC1 |
| Globe | 600# | 2″ to 12″ | ASTM A217 Gr. WC6 |
| Globe | 800# | 1/2″ to 2″ | ASTM A217 Gr. WC9 |
| Globe – PRESSURE SEAL | 900# | 1/2″ to 12″ | ASTM A217 Gr. C5 |
| Globe – PRESSURE SEAL | 1500# | 1/2″ to 12″ | ASTM A217 Gr. C12 |
| Globe – PRESSURE SEAL | 2500# | 2″ to 4″ | ASTM A351 Gr. F8 |
| Globe – CRYOGENIC | 150# | 2″ to 16″ | ASTM A351 Gr. F3 |
| Globe – CRYOGENIC | 300# | 2″ to 16″ | ASTM A351 Gr. F8M |
| ASTM A351 Gr. CF3M | |||
| ASTM A351 Gr. CN7M | |||
| ASTM A351 Gr. CF8C | |||
| ASTM A351 Gr. CD4Mcu | |||
| ASTM A351 Gr. CK3MCuN | |||
| ASTM A352 Gr. LCA | |||
| ASTM A352 Gr. LCB | |||
| ASTM A352 Gr. LCC | |||
| ASTM A494 Gr. CW6MC | |||
| Globe – CRYOGENIC | 600# | 2″ to 16″ | ASTM A494 Gr. CW2M |
| ASTM A494 Gr. CW2M | |||
| ASTM A494 Gr. CY40 | |||
| ASTM A494 Gr. CU5MCuC | |||
| ASTM A995 Gr. 1A | |||
| ASTM A995 Gr. 4A | |||
| ASTM A995 Gr. 5A | |||
| ASTM A995 Gr. 6A | |||
NACE malt. Grade to NACE MR0175/NACE MR | |||
Note : Valves Can be Supplied With Actuator, Pad Lock and Other Accessories Like Limit Switch, Position Indicator, Solenoid Valve as Per Requirement Stem Extention, Underground Service Features are Available | |||
Standards :
| Design Standard | BS 1873 |
| Testing Standard | BS EN 12266 – 1 |
| Face To Face | ASME B 16.10 |
| End Connection | Flanged End – ASME B 16.5 Butt Weld End – ASME B 16.25 |
| Pressure – Temperature Chart | ASME B 16.34 |
Valve Operation :
| Operator | Size Range |
| Handwheel | 2” – 10” – Class 150, 300 |
| 2” – 6” – Class 600 | |
| Gear Operator | 12” & Above – Class 150 & 300 |
| 8” & Above – Class 600 | |
| 12” & Above – Class 900 & 1500 |
Material :
| STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC |
| Operation | Hand wheel, Gear Operator, Electrical Actuator, Pneumatic, Hydraulic | |
| MATERIAL | Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel |
| Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel |

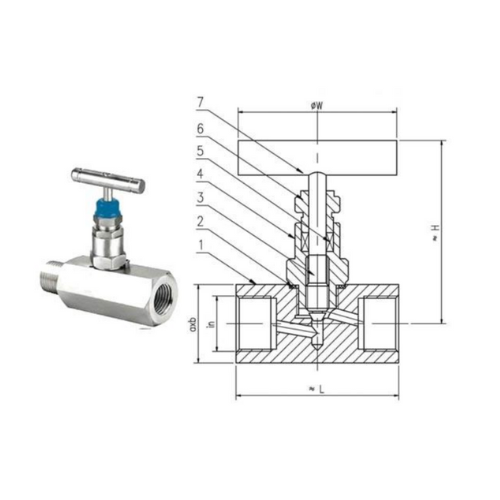

Stainless Steel Needle Valve Construction
Number | Name | Material |
1 | Set Screw | SS304 |
2 | Handle | SS304 |
3 | Stem | SS316 |
4 | Gland Nut | SS316 |
5 | Packing | TEFLON |
6 | Bonnet | ASTM A-351 GR. CF3M |
7 | Body | ASTM A-351 GR. CF3M |
Neddle Valve Dimension Standards
Size | L | a | b | W | H |
1/8″ | 56 | 28 | 28 | 60 | 80 |
¼” | 56 | 28 | 28 | 60 | 80 |
3/8” | 56 | 28 | 28 | 60 | 80 |
½” | 58 | 28 | 28 | 60 | 81 |
¾” | 62 | 35 | 35 | 60 | 85 |
1” | 70 | 45 | 45 | 70 | 100 |
Port Size (BSP) | Media Pressure | Media Temperature | CV |
1/8″ | 0 to 408 Bar | -20°C to 230°C |
|
¼” | 0 to 408 Bar | -20°C to 230°C | 0.4 |
3/8” | 0 to 408 Bar | -20°C to 230°C | 0.4 |
½” | 0 to 408 Bar | -20°C to 230°C | 0.6 |
¾” | 0 to 408 Bar | -20°C to 230°C | 1.6 |
1” | 0 to 408 Bar | -20°C to 230°C | 2.5 |
